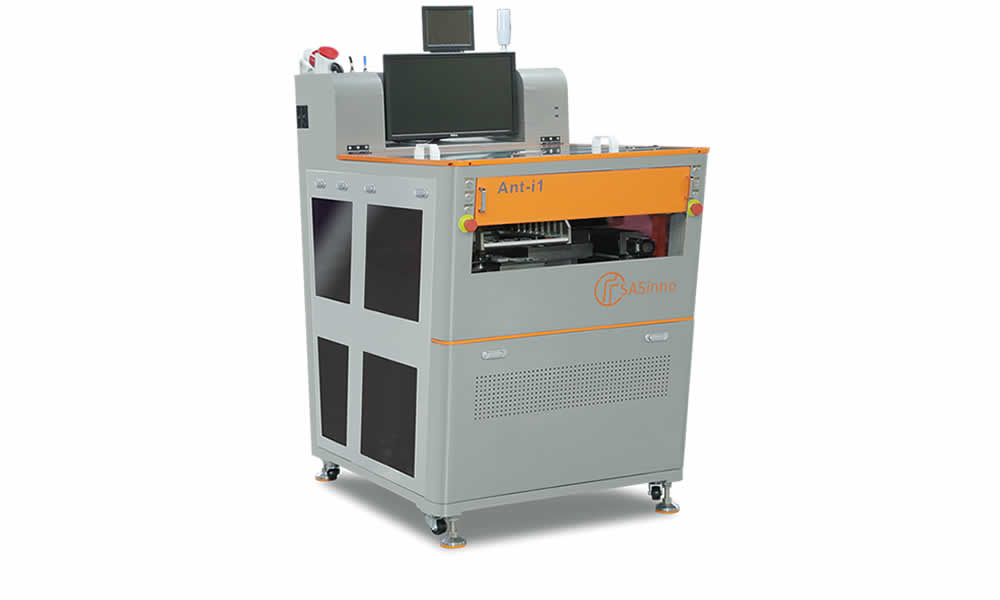

Ant-i1 is an entry-level compact offline selective soldering machine with the following features:

    ●   One drop jet fluxer

    ●   Bottom IR preheating, optional with top preheating zone

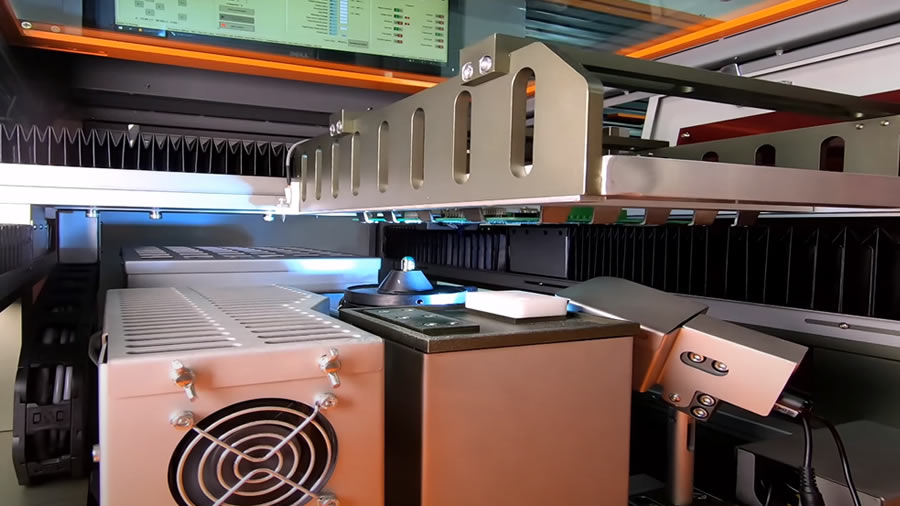

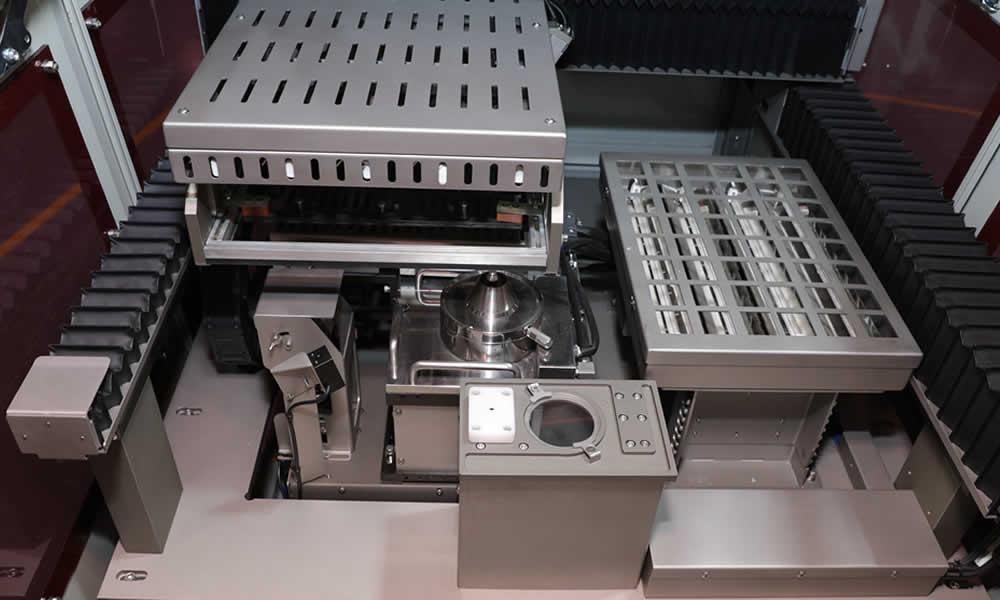

    ●   One solder pot with one wave tunnel

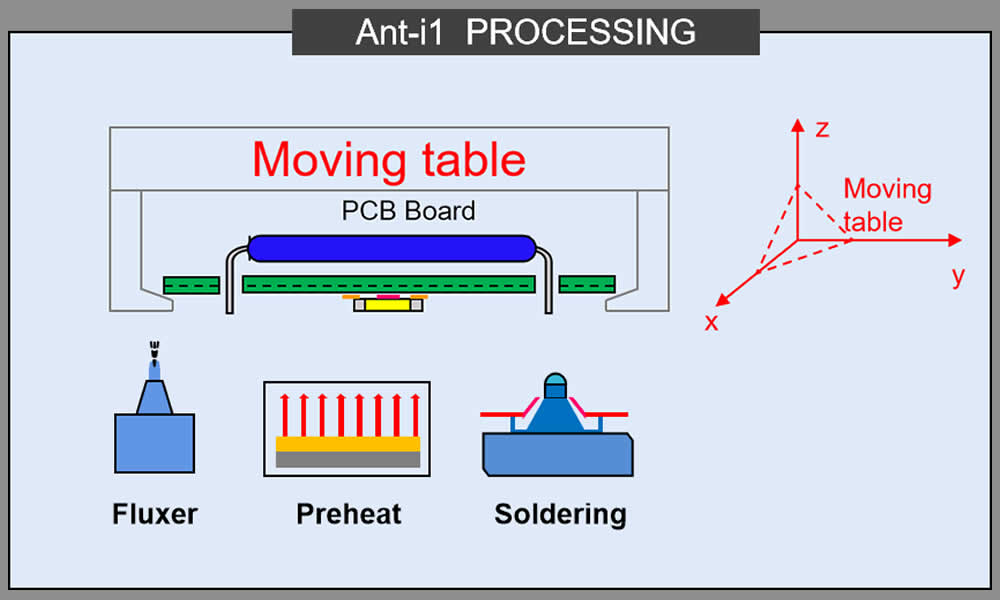

    ●   PCB moves in X/Y while solder pot/fluxer moves in Z

    ●   Single soldering nozzle handles max 350 x 250 mm

    ●   Windows 10 operating system

    ●   Three-axis full servo drive with ball screw movement

    ●   Standard equipped with wave height calibration

    ●   Real-time soldering process monitor

Ant-i1 Offline Selective Soldering Machine Specifications
    Item Ant-i1
    Operating power/Max power 4KW/6.5KW
    PCB dimension 50x50---350x260mm (Can manually rotate board to 180degree to meet L700mm x W260mm)

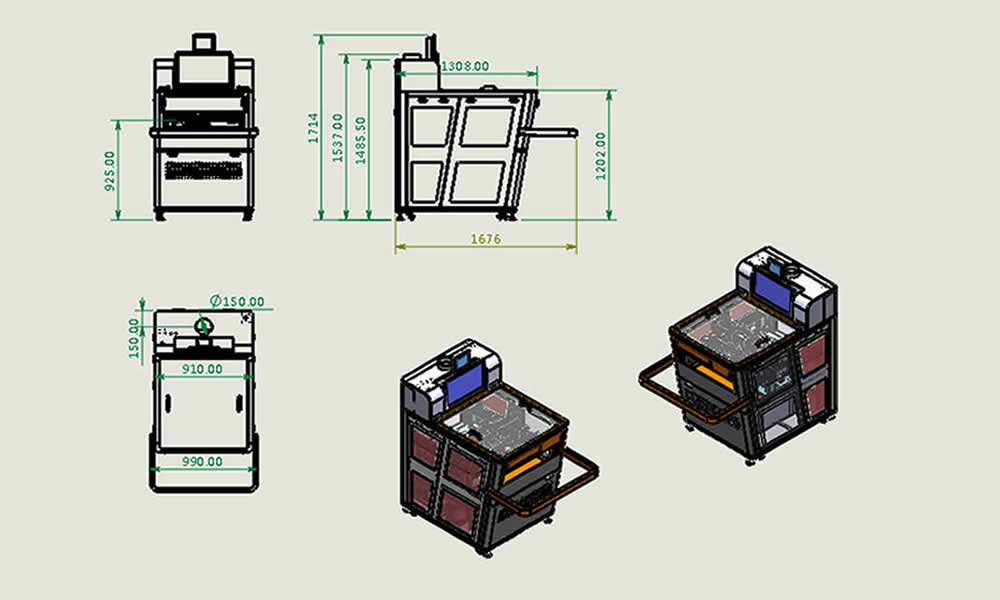

    Machine dimension W990mm X D1308mm X H1714MM
    Net weight 400KG
    Power supply 1PH 220V 50HZ MAX 30A Equip 40A contactor in factory
    Air supply 3-5 bars
    Exhausting required 200M3/h
    Solder Management
    Standard Solder Stations 1
    Solder Pot Capacity 15 kgs
    Heat-Up Time About 40mins
    Max Temperature 380 ℃
    Solder Pot heater 1.2kw
    Solder Nozzles
    Mini Wave Nozzles Dia 2 to 8mm
    Customized nozzle Available
    Nozzle Material Proprietary Alloy
    (N2) Inertion Management
    N2 heater Standard Equipped
    N2 Temp PID Control Range 0 - 300℃
    N2 Consumption per Nozzle 1.5m3/H
    Required N2 Purity >99.99%
    Flux Management
    Spray Flux Nozzle Standard equipped with drop jet nozzle made in Germany
    Flux Capacity 1L
    Flux Tank Constant pressure tank
    IR heater 2kw

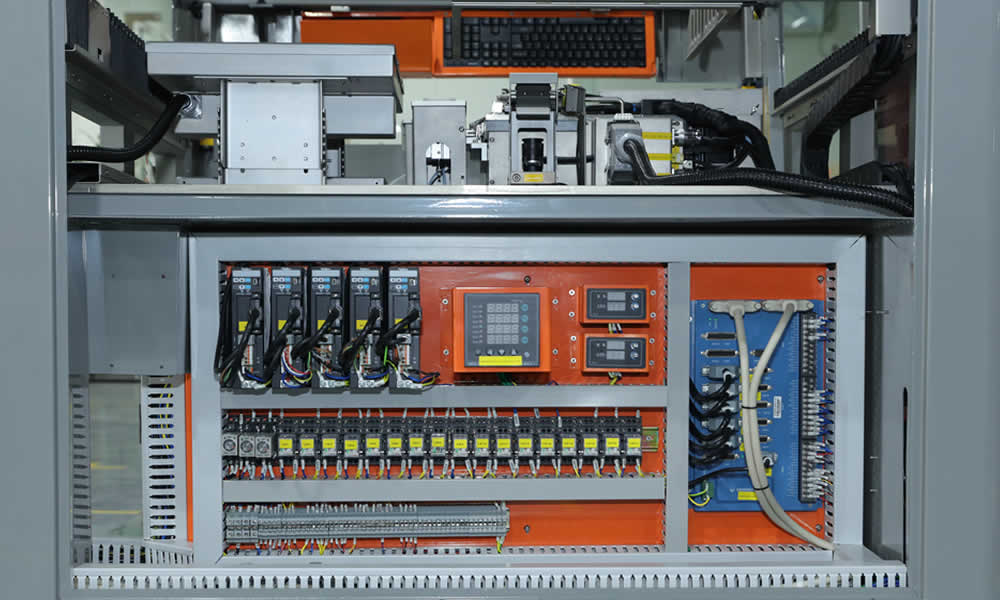

    Controlling System
    Industrial PC Yes
    Typical Program Time 10 Minutes
    Program method Draw path in scanned picture of board
    Controlling system PC
