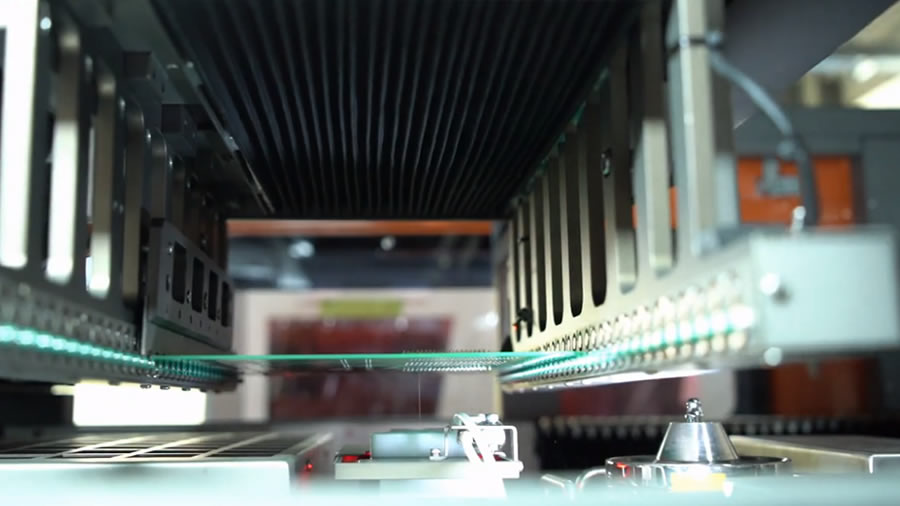

Unit-i1 is an all-in-one compact inline machine with the following features:
● 1 drop jet fluxer
● Bottom IR preheating
● One solder pot, with one wave tunnel
● The PCB is moving by a conveyor, the conveyor table movies in X/Y, the solder pot/fluxer movies in Z
● Windows 10 operating system
● 3-axis full servo drive with ball screw movement
● Standard equipped with wave height calibration
● Real-time soldering process monitor
● Optional built-in AOI inspection function
| Unit-i1 Specifications | |
|---|---|
| Item | Unit-i1 |
| General | |
| Operating power/Max power | 4KW/6.5KW |
| Machine dimension | 1318(L)*1600(W)*1246(H) |
| Net weight | 400KG |
| Power supply | 3PH 380V 50HZ Or 1PH 220V |
| Air supply | 3-5 bars |
| Exhausting required | 300M3/h |
| PC | Yes |
| Typical Program Time | 10Minutes |
| Conveyor | |
| PCB dimension | W50 x L50---W350xL450mm |
| PCB Clearance | Top 100mm bottom 30mm |
| PCB Weight | Max 5kg |
| Conveyor width | Auto |
| Conveyor assembling motion | X,Y motion with server motor/driver |
| Fluxing | |
| Flux Nozzle Type | Drop jet fluxer |
| Flux Nozzle Quantity | 1 |
| Flux Tank Capacity | 1L |
| Flux Tank Quantity | 1 |
| preheat | |
| Preheating method | Bottom IR heater |
| Solder Management | |
| Solder pot type | mechanical pump |
| Standard Solder Stations | 1 |
| Solder Pot Capacity | 15 kgs |
| Solder Temperature Control | PID |
| Heat-Up Time | About 30mins |
| Max Temperature | 350℃ |
| Wave tunnel | 1pcs |
| Mini Wave Nozzles | Dia 3 to12mm |
| Customized nozzle | Available |
| Axes of Motion | Z |
| (N2) Inertion Management | |
| N2 Consumption per Nozzle | 1.5 m3/H |
| Required N2 Purity | >99.99% |
| AOI Insepection | |
| Camera | 5 mega pixels |
| Resolution | 15µm |
| FOV | 36*30mm |
| Lighting | >RGB 3 color lighting |
| Inspection defects coverage | less solder, excessive solder, bridging etc |
